The Mega Screen 800
Tired of not finding a septic receiving station that works and is affordable? We developed these effective solutions to remove trash from septic and grease trap waste. Our screen systems can be setup virtually anywhere. Simply connect the receiving hose to your pump truck. Our receiving stations are designed for gravity offload. Septage and grease are screen filtered to remove 99% of garbage.
Filtered garbage collection atop screens is manually raked into a bolt on universal garbage tray with 3/8" slotted drains. Custom stainless steel rake included. 500-1000 gallon per minute offload rate varies by model and is possible through our patented dual screen design.
The Mini Screen 400
Your leader in simple innovative technology. Our screening products and accessories are designed, built and field tested by industry professionals. Simple equipment that really works! Made in the USA!
Septic and grease receiving stations from Screenco Systems are affordable and very effective at removing trash from any flow stream, keeping land application and lagoon sites trash free. Our systems are high capacity, gravity offload, ranging from 500 GPM to 1000 GPM filtering rocks, rags, roots and hair. Our screening systems are constructed of lightweight quality aluminum with 3/8" gapped stainless steel screens which meet the new 503 regulations. Four models are currently available, featuring our patented Dual-Screen design. The Mini-Screen features 16 square ft of screening area with up to 500 GPM off load. Small footprint, big results! The Maxi-Screen features 20.5 square ft of screening area with up to 500 GPM off load.
The Porta-Screen features 20.5 square ft of screening area with up to 500 GPM off load. Simply tow it behind any pump truck to screen trash while field spreading. The Mega-Screen features a whopping 40.5 square ft of screening area with up to 1000 GPM of off load capacity. All units are simple, non-mechanical and will not plug with rags or hair.
Our new Grit-Eliminator simply removes grit from any flow stream ranging from 15 - 72 cubic ft with 6" cam inlet and outlet. 8" cam size is standard on extra large Grit Eliminator units. Stainless channels and baffles with aluminum lids and gaskets as standard. Just let gravity do the work for you.
Our new line of pumping accessories include, Folding Tripod Lid-Lifters, Aluminum Tank Mixing-Stick, Long Handle Stainless Scrapers, Heavy Duty Telescoping Inspection Mirrors and Deck Hose Racks which stack up to five pump hoses nestled against any tank.
4" or 6" inlet valve allows for FAST garbage filtering while the 6" or 8" outlet insures constant outflow to onsite storage. Our receiving station is easily cleaned with water and filters out rags, rocks, roots, etc. The 4" telescoping dump hose easily connects to your pump truck for gravity offload.
Screens are made of 100% stainless steel, 1/4" x 1" bars utilizing 3/8" openings and meets new 503 ecology requirements.
Cleaned septage dumps into onsite storage via 6" or 8" outlet which insures constant outflow. Removes 99% of garbage ensuring cleaner bio-solids. Screens are removable for easy servicing. Adjustable leg heights.
Catwalk meets all OSHA regulations.
The Mega Screen 600
The Porta-Spreader 400

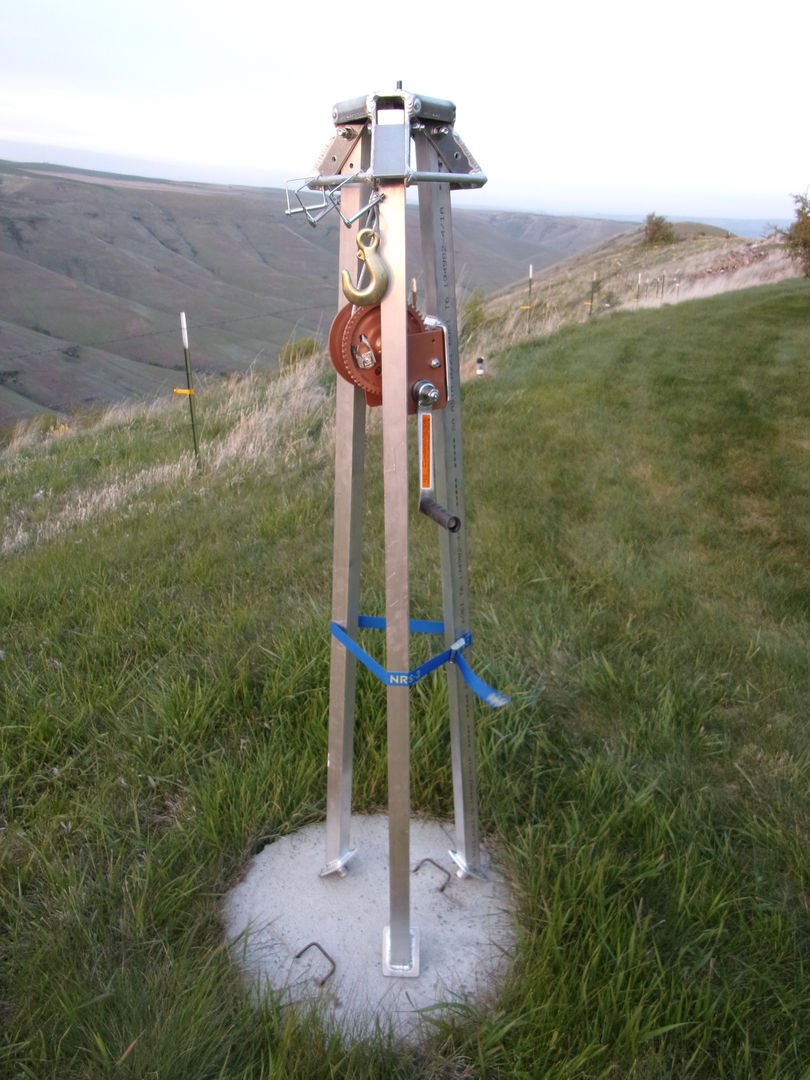

We love the Tri-Pod, saving your back IS awesome. Easy to work with and does a great job. We are getting another for our other (pump) truck. Thank you for your product.
William and Sons Services, Inc.
Just wanted to let you know how happy we are with the performance of the Screenco unit (Maxi Screen). It was simple to set up and quick to make a few minor modifications for our particular application. We had it running the next morning after delivery and we have already seen the time and effort it saves us on “heavier” loads, compared to our rotary drum screening unit.
The design, materials and fabrication are all top quality. We definitely feel that we got the quality unit we needed. The delivery went smoothly too as the driver kept us in the loop on his location and ETA. So thanks for providing a quality product and delivery service. We look forward to many years (and gallons) using our Maxi Screen!
**Financing Available** (O.A.C.)
The Grit Eliminator
The Maxi Screen 400
We received the ScreenCo unit yesterday and it seems to be a simple system … that works! It’s much better than the automated (machine) we used. Within 30 minutes of it coming through our gate, it was setup and had a septic truck dumping to it. Two more trucks came in this morning and it is getting the job done.,
Chris Hill - Greenville Utilities
The Mini Screen 400
It (Grit Eliminator & Mega Screen) works awesome! It's collecting all of the grit and we are filling a dumpster full of trash ,rags, etc. every week. We are going to clean out the grit chamber today which will be one day short of 2 weeks in operation. The real key are the tools you fabricated (ease of operation). The rake that fits through the grates is sweet! The tolerance is perfect and is my tool of choice over the fork. But I use all of them throughout the day as well.
As far as the overall operation it really is working wonderfully and we are getting the same feedback from our pumpers too.
Thus far totally satisfied, thank you!
Shane Macuk - Rogue Valley Sewer Services
Central Point, OR
High Capacity! ~ up to 1000 gal. per minute.
Can be mounted above an open pit or standalone application can be stationed virtually anywhere.
Ideal for screening lagoon headworks.
Aluminum construction with stainless steel screens.
100% stainless steel option available.
Custom built applications available.
3/8" gapped steel bar screens meet new EPA 503 ecology requirements.
Collection sump located under screens.
Forklift skids mounted beneath, ultra portable.
Double folding 7ft trash chute standard on all models.
The Trash Master 400
I wanted to let you know how much we are enjoying our new Screenco screen. We have been unloading our septage through a rotary screen for twelve years now and have just dealt with the difficulty of it plugging up and having to stop the process to clear the screen. Our new Screenco screen is a dream to use. There are no moving parts and the screen surface area is large enough to complete a difficult dump while dealing with heavy trash. The setup is user friendly and clean and the small footprint of the equipment allows so much flexibility in the arrangement of equipment. This is the best investment I’ve made yet!!
Vince Gannon - Westwood Sanitation
Just wanted to let you know how happy we are with the performance of the Screenco unit (Mini Screen). It was simple to set up and quick to make a few minor modifications for our particular application. We had it running the next morning after delivery and we have already seen the time and effort it saves our septage haulers. The design, materials and fabrication are all top quality. We definitely feel that we got the quality unit we needed. So thanks for providing a quality product and delivery service. We look forward to many years (and gallons) using our Mini Screen!
Steve Caruso - Wastewater Superintendent
Click below for PDF brochure
Clamp handles for suction hose & pipe.
Check out the new models available like the Trash Master 400 and the Micro-Screen 400!
